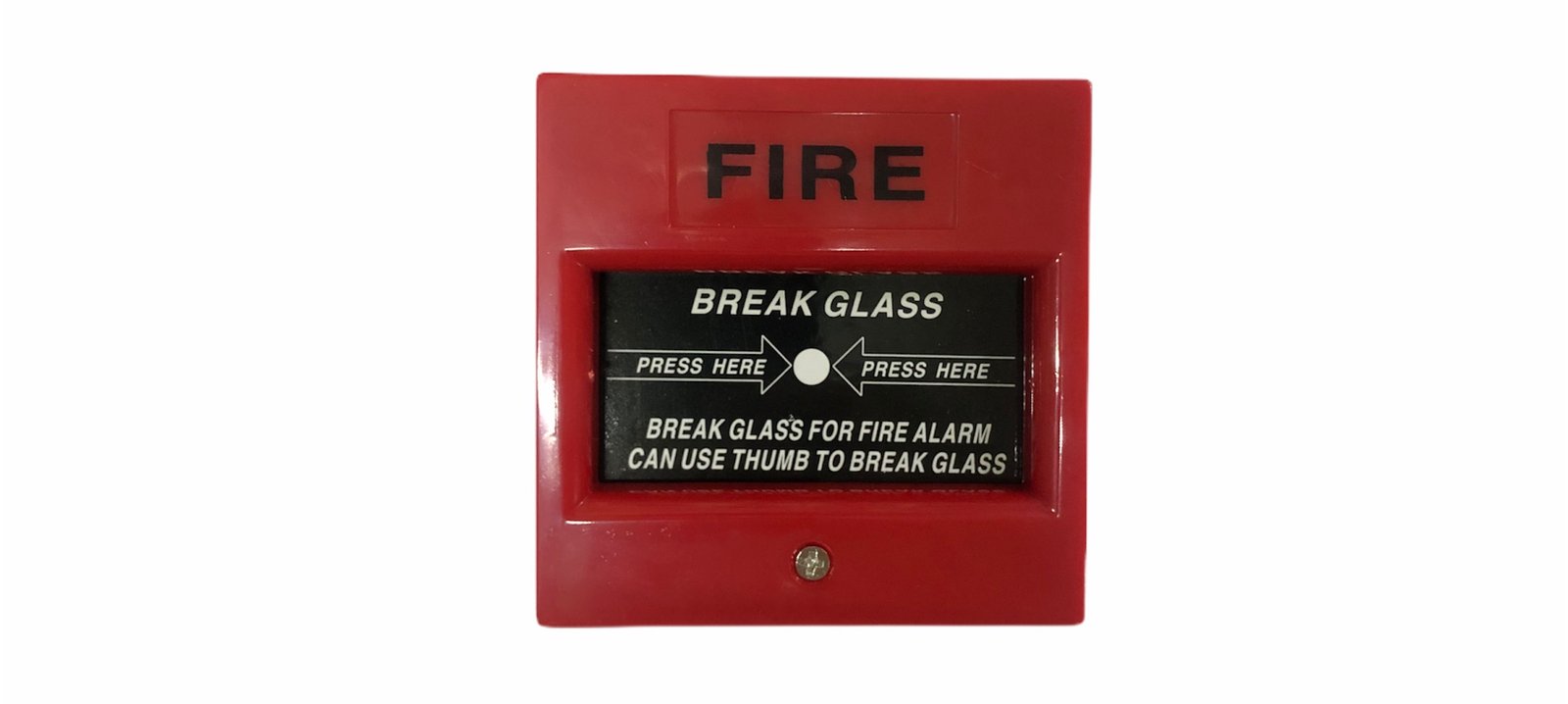

Manual Call Point Break Glass
Break Glass9V / 24V DCManual Activation
A break glass manual call point for fire alarm systems. Press the marked area to activate the alarm. This red plastic unit operates on 9V / 24V DC, with 1 mA standby and 15 mA alarm current. An indicator, protective cover, and waterproof box are optional; five colors are available by customization.
Key Features
- Break glass manual activation
- 9V / 24V DC supply
- 1 mA standby / 15 mA alarm current
- Red plastic housing; 86 أ— 86 أ— 55 mm
- Optional indicator and protective cover
- Optional waterproof box; custom colors available
Technical Specifications
Power Supply
9V / 24V DC
Standby Current
1 mA
Alarm Current
15 mA
Dimensions
86 أ— 86 أ— 55 mm
